Range Road 50 Series Sawmills
The Affordable Solution For Your Sawmill Needs
For those searching for a budget-friendly sawmill, look no further than the Range Road 50 Series Sawmills. With four different size options – 22”, 26”, 32”, and 36” – there is a model that will meet your unique requirements. Choose the engine and cutting diameter that best suits your needs. The 50 Series sawmills are capable of cutting veneers up to 6.875” slabs and 10’ log lengths. Additionally, the Range Road 50 Series offers a variety of accessory options, including extensions and trailer packages. You can trust the 50 series to get the job done right without breaking the bank.
$1,605
Price for Crated Unassembled Unit *Taxes, Freight, or Assembly Extra
RR5018A 18″
The Perfect Beginner’s Hobby Mill – Affordable and Easy to Use! The RR5018A sawmill, the smallest in Range Road’s 50 Series lineup, is a two-post hobby mill that’s ideal for novice sawyers. The 8.5HP engine provides ample power to saw logs up to 18″ in diameter and 7′ in length, while also enabling cuts from veneers up to 5″ thick slabs. Additionally, extensions are available to increase the cutting length as needed.
Specifications
8.5HP Rato Engine Recoil Start
2-Post Head Design Gravity-fed Lubricant/Coolant System Fixed Blade Guide Belt Driven Centrifugal Clutch Blade Engagement System Felt Track Wipers Powder-coated Finish
Maximum Log Diameter: 18” Maximum Cut Width: 17” Maximum Cut Depth: 5″ Maximum Log Length: 7’
Overall Track Length: 9’ 2″ Overall Track Width: 27” Overall Track Dimension: .25” thick x 2.25″ high x 3.625″ wide Bunk Size: 3” x 6” 8- Leveling Feet 2- Long Log Supports 2- Short Log Supports 1- Screw-type Log Clamp Galvanized & Powder-coated Finishes
1- Blade included Blade Size: 109.5” x 1.25” x .042” 10° Blade Speed: 3279 fpm
— Shipping Crate Dimensions 57” long x 17” wide x 25” high
— Shipping Crate Weight 475lbs
$2,190
Price for Crated Unassembled Unit *Taxes, Freight, or Assembly Extra

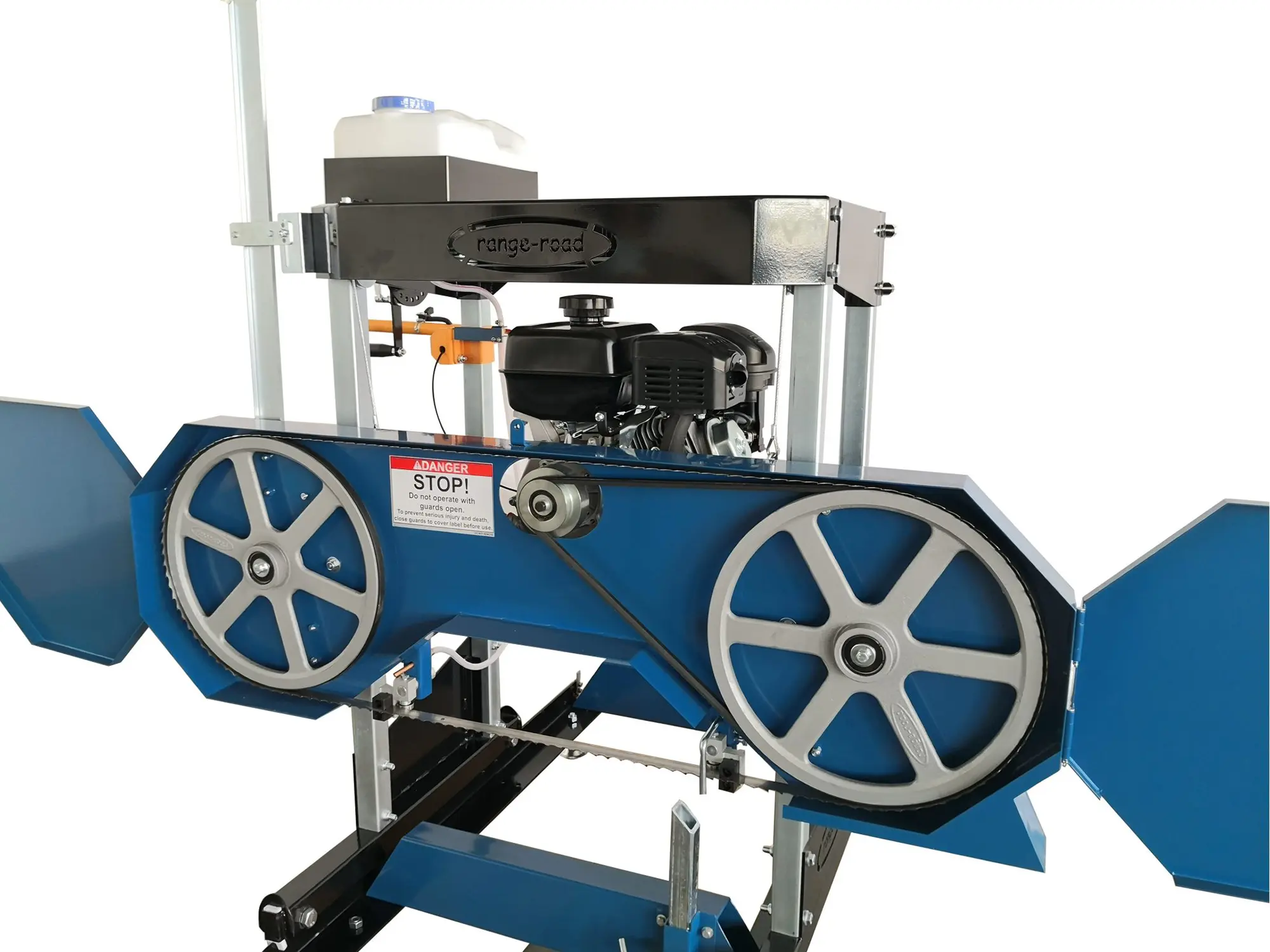

RR5022B 22”
The RR5022B is equipped with a 10HP Briggs and Stratton Engine. Constructed with a robust 4-post Saw Head design, featuring sturdy grooved roller wheels with sealed bearings to ensure smooth saw head movement. Sealed bearings help avoid vibration-induced wear and tear, boosting precision, performance, and durability. The manual feed saw head, powered by the user, provides complete control over the cutting process, ensuring maximum safety. A belt-driven centrifugal clutch blade engagement system provides ultimate power transfer efficiency between the engine and sawblade, promoting smoother overall operation. An adjustable log clamp is included to secure logs in place during cutting, allowing for accurate lumber production. The hand-crank lifting mechanism of the saw head facilitates easy adjustment of cutting depth. This feature allows for precise customization of the cut thickness for each log, enabling precise milling of lumber to meet the specific dimensions required for your project.
RR5022B w/3m Trailer Package (CRATED)
$3700 + tax/freight
Price for Crated Unassembled Unit *Taxes, Freight, or Assembly Extra
For 10′ Trailer Specifications Click Here
RR5022B w/5m Trailer Package (CRATED)
$4230 + tax/freight
Price for Crated Unassembled Unit *Taxes, Freight, or Assembly Extra
For 16′ Trailer Specifications Click Here
RR5022B w/10hp Briggs & Stratton Engine
22″ Sawmill (CRATED)
$2190 + tax/freight
Price for Crated Unassembled Unit *Taxes, Freight, or Assembly Extra
For 16′ Trailer Specifications Click Here
Specifications
10HP Rato Engine Recoil Start Low Oil Engine Sensor Hour Meter
4-Post Head Design 2.75 Gallon Lubricant/Coolant Tank (Removable for easy filling.) Gravity-fed Lubricant/Coolant System Fixed Blade Guide Belt Driven Centrifugal Clutch Blade Engagement System Locking T-handles Felt Track Wipers 19” Diameter Cast Iron Blade Wheels Powder-coated Finish
Maximum Log Diameter: 22” Maximum Cut Width: 20.75” Maximum Cut Depth: 6.875” Maximum Log Length: 10’
Overall Track Length: 13’ 5” Overall Track Width: 33.625” Overall Track Dimension: .25” thick x 2.25″ high x 3.625″ wide Bunk Size: 3” x 6” 12- Leveling Feet 2- Long Log Supports 2- Short Log Supports 1- Screw-type Log Clamp Galvanized & Powder-coated Finishes
1- Blade included Blade Size: 144.25″ x 1.25″ x .042” 10° Blade Speed: 3150 fpm
— Shipping Crate Dimensions 83” long x 24” wide x 32” high
— Shipping Crate Weight 780lbs
$2,899
Price for Crated Unassembled Unit *Taxes, Freight, or Assembly Extra
RR5026A 26”
The RR5026A is equipped with a 15HP Rato Electric Start engine. Constructed with a robust 4-post Saw Head design, featuring sturdy grooved roller wheels with sealed bearings to ensure smooth saw head movement. Sealed bearings help avoid vibration-induced wear and tear, boosting precision, performance, and durability. The manual feed saw head, powered by the user, provides complete control over the cutting process, ensuring maximum safety. A belt-driven centrifugal clutch blade engagement system provides ultimate power transfer efficiency between the engine and sawblade, promoting smoother overall operation. An adjustable log clamp is included to secure logs in place during cutting, allowing for accurate lumber production. The hand-crank lifting mechanism of the saw head facilitates easy adjustment of cutting depth. This feature allows for precise customization of the cut thickness for each log, enabling precise milling of lumber to meet the specific dimensions required for your project.
$4,315 – RR5026A-T3K 26” 50 Series Sawmill With 10’ Trailer Kit
Price for Crated Unassembled Unit *Taxes, Freight, or Assembly Extra
For 10′ Trailer Specifications Click Here
$4,979 – RR5026A-T5K 26” 50 Series Sawmill With Track Extension & 16’ Trailer Kit
Price for Crated Unassembled Unit *Taxes, Freight, or Assembly Extra
For 16′ Trailer Specifications Click Here
Specifications
15HP Rato Engine Electric Start Battery Included Low Oil Engine Sensor Hour Meter
4-Post Head Design 2.75 Gallon Lubricant/Coolant Tank (Removable for easy filling.) Gravity-fed Lubricant/Coolant System Fixed Blade Guide Belt Driven Centrifugal Clutch Blade Engagement System Locking T-handles Felt Track Wipers 19” Diameter Cast Iron Blade Wheels Powder-coated Finish
Maximum Log Diameter: 26” Maximum Cut Width: 22.125” Maximum Cut Depth: 6.875” Maximum Log Length: 10’
Overall Track Length: 13’ 5” Overall Track Width: 33.625” Overall Track Dimension: .25” thick x 2.25″ high x 3.625″ wide Bunk Size: 3” x 6” 12- Leveling Feet 2- Long Log Supports 2- Short Log Supports 1- Screw-type Log Clamp Galvanized & Powder-coated Finishes
1- Blade included Blade Size: 144.25″ x 1.25″ x .042” 10° Blade Speed: 3150 fpm
— Shipping Crate Dimensions 84” long x25” wide x 31” high
— Shipping Crate Weight 830lbs
$3,710
Price for Crated Unassembled Unit *Taxes, Freight, or Assembly Extra
RR5032A 32”
The RR5032A is equipped with a 22HP Rato Electric Start engine. Constructed with a robust 4-post Saw Head design, featuring sturdy grooved roller wheels with sealed bearings to ensure smooth saw head movement. Sealed bearings help avoid vibration-induced wear and tear, boosting precision, performance, and durability. The manual feed saw head, powered by the user, provides complete control over the cutting process, ensuring maximum safety. A belt-driven centrifugal clutch blade engagement system provides ultimate power transfer efficiency between the engine and sawblade, promoting smoother overall operation. An adjustable log clamp is included to secure logs in place during cutting, allowing for accurate lumber production. The hand-crank lifting mechanism of the saw head facilitates easy adjustment of cutting depth. This feature allows for precise customization of the cut thickness for each log, enabling precise milling of lumber to meet the specific dimensions required for your project.
$5,210 – RR5032A-T3K 32” 50 Series Sawmill With 10’ Trailer Kit
Price for Crated Unassembled Unit *Taxes, Freight, or Assembly Extra
For 10′ Trailer Specifications Click Here
$6,035 – RR5032A-T5K 32” 50 Series Sawmill With Track Extension & 16’ Trailer Kit
Price for Crated Unassembled Unit *Taxes, Freight, or Assembly Extra
For 16′ Trailer Specifications Click Here
Specifications
22HP Rato Engine Electric Start Battery Included Low Oil Engine Sensor Hour Meter
4-Post Head Design 2.75 Gallon Lubricant/Coolant Tank (Removable for easy filling.) Gravity-fed Lubricant/Coolant System Adjustable Blade Guide: 10″- 29″ Belt Driven Centrifugal Clutch Blade Engagement System Locking T-handles Felt Track Wipers 19” Diameter Cast Iron Blade Wheels Powder-coated Finish
Maximum Log Diameter: 32” Maximum Cut Width: 29” Maximum Cut Depth: 6.875” Maximum Log Length: 10’
Overall Track Length: 13’ 5” Overall Track Width: 39.9375” Overall Track Dimension: .25” thick x 2.25″ high x 3.625″ wide Bunk Size: 3” x 6” 12- Leveling Feet 2- Long Log Supports 2- Short Log Supports 1- Screw-type Log Clamp Galvanized & Powder-coated Finishes
1- Blade included Blade Size: 156″ x 1.5″ x .042” 10° Blade Speed: 3150 fpm
— Shipping Crate Dimensions 84” long x 25” wide x 35” high
— Shipping Crate Weight 1020lbs
$3,385
Price for Crated Unassembled Unit *Taxes, Freight, or Assembly Extra
RR5032B 32”
The RR5032B is equipped with a 14HP Kohler Electric Start engine. Constructed with a robust 4-post Saw Head design, featuring sturdy grooved roller wheels with sealed bearings to ensure smooth saw head movement. Sealed bearings help avoid vibration-induced wear and tear, boosting precision, performance, and durability. The manual feed saw head, powered by the user, provides complete control over the cutting process, ensuring maximum safety. A belt-driven centrifugal clutch blade engagement system provides ultimate power transfer efficiency between the engine and sawblade, promoting smoother overall operation. An adjustable log clamp is included to secure logs in place during cutting, allowing for accurate lumber production. The hand-crank lifting mechanism of the saw head facilitates easy adjustment of cutting depth. This feature allows for precise customization of the cut thickness for each log, enabling precise milling of lumber to meet the specific dimensions required for your project.
$4,885 – RR5032B-T3K 32” 50 Series Sawmill With 10’ Trailer Kit
Price for Crated Unassembled Unit *Taxes, Freight, or Assembly Extra
For 10′ Trailer Specifications Click Here
$5,710 – RR5032B-T5K 32” 50 Series Sawmill With Track Extension & 16’ Trailer Kit
Price for Crated Unassembled Unit *Taxes, Freight, or Assembly Extra
For 16′ Trailer Specifications Click Here
Specifications
14HP Kohler Engine Electric Start or Pull Start Quad-Clean filter for extreme conditions Hot air recycling system for winter conditions Low Oil Engine Sensor 3 Year Engine Warranty from Kohler Dealer Battery Included Hour Meter
4-Post Head Design 2.75 Gallon Lubricant/Coolant Tank (Removable for easy filling.) Gravity-fed Lubricant/Coolant System Adjustable Blade Guide: 10″- 29″ Belt Driven Centrifugal Clutch Blade Engagement System Locking T-handles Felt Track Wipers 19” Diameter Cast Iron Blade Wheels Powder-coated Finish
Maximum Log Diameter: 32” Maximum Cut Width: 29” Maximum Cut Depth: 6.875” Maximum Log Length: 10’
Overall Track Length: 13’ 5” Overall Track Width: 39.9375” Overall Track Dimension: .25” thick x 2.25″ high x 3.625″ wide Bunk Size: 3” x 6” 12- Leveling Feet 2- Long Log Supports 2- Short Log Supports 1- Screw-type Log Clamp Galvanized & Powder-coated Finishes
1- Blade included Blade Size: 156″ x 1.5″ x .042” 10° Blade Speed: 3150 fpm
— Shipping Crate Dimensions 84” long x 25” wide x 35” high
— Shipping Crate Weight 1020lbs
$4,655
Price for Crated Unassembled Unit *Taxes, Freight, or Assembly Extra
RR5036A 36”
The RR5036A is equipped with a 22HP Rato Electric Start engine. Constructed with a robust 4-post Saw Head design, featuring sturdy grooved roller wheels with sealed bearings to ensure smooth saw head movement. Sealed bearings help avoid vibration-induced wear and tear, boosting precision, performance, and durability. The manual feed saw head, powered by the user, provides complete control over the cutting process, ensuring maximum safety. A belt-driven centrifugal clutch blade engagement system provides ultimate power transfer efficiency between the engine and sawblade, promoting smoother overall operation. An adjustable log clamp is included to secure logs in place during cutting, allowing for accurate lumber production. The hand-crank lifting mechanism of the saw head facilitates easy adjustment of cutting depth. This feature allows for precise customization of the cut thickness for each log, enabling precise milling of lumber to meet the specific dimensions required for your project.
$6,180 – RR5036A-T3K 36” 50 Series Sawmill With 10’ Trailer Kit
Price for Crated Unassembled Unit *Taxes, Freight, or Assembly Extra
For 10′ Trailer Specifications Click Here
$6,800 – RR5036A-T5K 36” 50 Series Sawmill With Track Extension & 16’ Trailer Kit
Price for Crated Unassembled Unit *Taxes, Freight, or Assembly Extra
For 16′ Trailer Specifications Click Here
Specifications
22HP Rato Engine Electric Start Battery Included Low Oil Engine Sensor Hour Meter
4-Post Head Design 2.75 Gallon Lubricant/Coolant Tank (Removable for easy filling.) Gravity-fed Lubricant/Coolant System Adjustable Blade Guide: 13.25″- 31.9″ Belt Driven Centrifugal Clutch Blade Engagement System Locking T-handles Felt Track Wipers 19” Diameter Cast Iron Blade Wheels Powder-coated Finish
Maximum Log Diameter: 36” Maximum Cut Width: 31.9” Maximum Cut Depth: 6.875” Maximum Log Length: 10’
Overall Track Length: 13’ 5” Overall Track Width: 43.5” Overall Track Dimension: .25” thick x 2.25″ high x 3.625″ wide Bunk Size: 3” x 6” 12- Leveling Feet 2- Long Log Supports 2- Short Log Supports 1- Screw-type Log Clamp Galvanized & Powder-coated Finishes
1- Blade included Blade Size: 162″ x 1.5″ x .042 10° Blade Speed: 3150 fpm
— Shipping Crate Dimensions 84” long x 25” wide x 35” high
— Shipping Crate Weight 1020lbs
